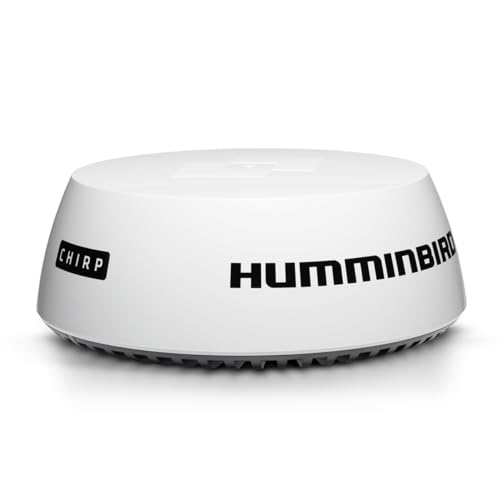

Humminbird Chirp Radar Dome
(0 reviews)
Estimate Shipping Time: 7 Days
Sold by:
R&S Shop
R&S Shop
Price:
$1799.99
Share:
Best Selling
-
Lowrance XSONIC AIRMAR TM185 HW
$1039.78 -
AQUAGLIDE Chelan Inflatable Kayak
$1249.99 -
Dive Rite Doubles Regulator Package
$1050.00
Antenna Dimension - 21" Enclosed Dome; Antenna Type - Patch Array; Peak Power Output - 20 Watts, Transmit Frequency - 9354 to 9446 MHz
Beam width (nominal) - 4.9° Horizontal and 20° Vertical; Input Voltage - 12 or 24 VDC (Miniumum - 10.8 Volts, Maximum - 31.2 Volts)
Networking - Ethernet; Maximum Range Scale - from 1/16 to 24 nautical miles; Power Consumption - Transmit mode - 17 Watts; Standby Mode - 7 Watts; Sleep Mode - 2 Watts
Duplexer - Circulator; Pulse Widths @ 3 dB - 40 ns to 14.7µs; CHIRP Lengths - 400 ns to 20µs; CHIRP Bandwidth - Up to 32 MHz
IF Bandwidth - 26 MHz; Noise - Less than 4 dB; Polarization - Horizontal
Duplexer - Circulator; Pulse Widths @ 3 dB - 40 ns to 14.7µs; CHIRP Lengths - 400 ns to 20µs; CHIRP Bandwidth - Up to 32 MHz
IF Bandwidth - 26 MHz; Noise - Less than 4 dB; Polarization - Horizontal
Waterproofing - IPX6
Weight - 12.3 lbs (5.6 kg)
1-Year Limited Warranty
Beam width (nominal) - 4.9° Horizontal and 20° Vertical; Input Voltage - 12 or 24 VDC (Miniumum - 10.8 Volts, Maximum - 31.2 Volts)
Networking - Ethernet; Maximum Range Scale - from 1/16 to 24 nautical miles; Power Consumption - Transmit mode - 17 Watts; Standby Mode - 7 Watts; Sleep Mode - 2 Watts
Duplexer - Circulator; Pulse Widths @ 3 dB - 40 ns to 14.7µs; CHIRP Lengths - 400 ns to 20µs; CHIRP Bandwidth - Up to 32 MHz
IF Bandwidth - 26 MHz; Noise - Less than 4 dB; Polarization - Horizontal
Duplexer - Circulator; Pulse Widths @ 3 dB - 40 ns to 14.7µs; CHIRP Lengths - 400 ns to 20µs; CHIRP Bandwidth - Up to 32 MHz
IF Bandwidth - 26 MHz; Noise - Less than 4 dB; Polarization - Horizontal
Waterproofing - IPX6
Weight - 12.3 lbs (5.6 kg)
1-Year Limited Warranty
